Welding Technologies

25 KVA
Butt Welders

Specifications:
  • 25KVA Transformer
  • Wire Size Range:
    • 0 .2" - 0 .5" Diameter
  • Air Cooled
  • 240 or 480VAC
  • 60HZ
  • Slide with a balanced drive.
  • 2 cam clamps to hold wire in place
  • 4 heavy duty castor wheels
    • 1 pair is swivel
  • Tap switch for heat select

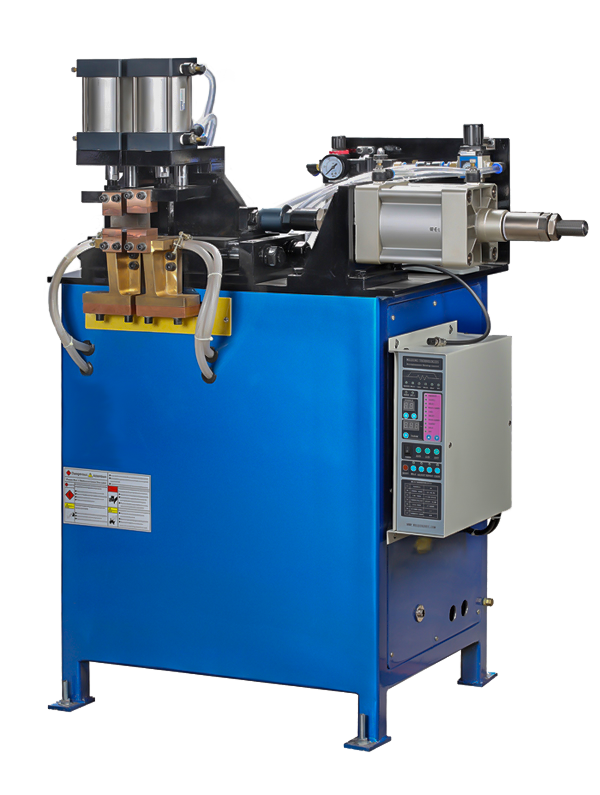

50 KVA
Butt Welders

Specifications:
  • 50KVA Transformer
  • Wire Size Range:
    • 0 .2” -  0 .75” Diameter
  • Air Cooled
    • Water Cooling Option Available
  • 240 or 480VAC
  • 60HZ
  • Air driven Jaws & Upset Cylinder
  • 2 Pneumatic Clamping
    • Vertical Cylinders
  • Set of 4 caster and reinforced frame

100 KVA
Butt Welders

Specifications:
  • 100KVA Transformer
  • Wire Size Range:
    • 0 .375” -  1 .187” Diameter
  • Air Cooled
    • Water Cooling Option Available
  • 240 or 480VAC
  • 60HZ
  • Air driven Jaws & Upset Cylinder
  • 2 Pneumatic Clamping
    • Vertical Cylinders
  • Set of 4 caster and reinforced frame
